OvationLITE Red Light Bed

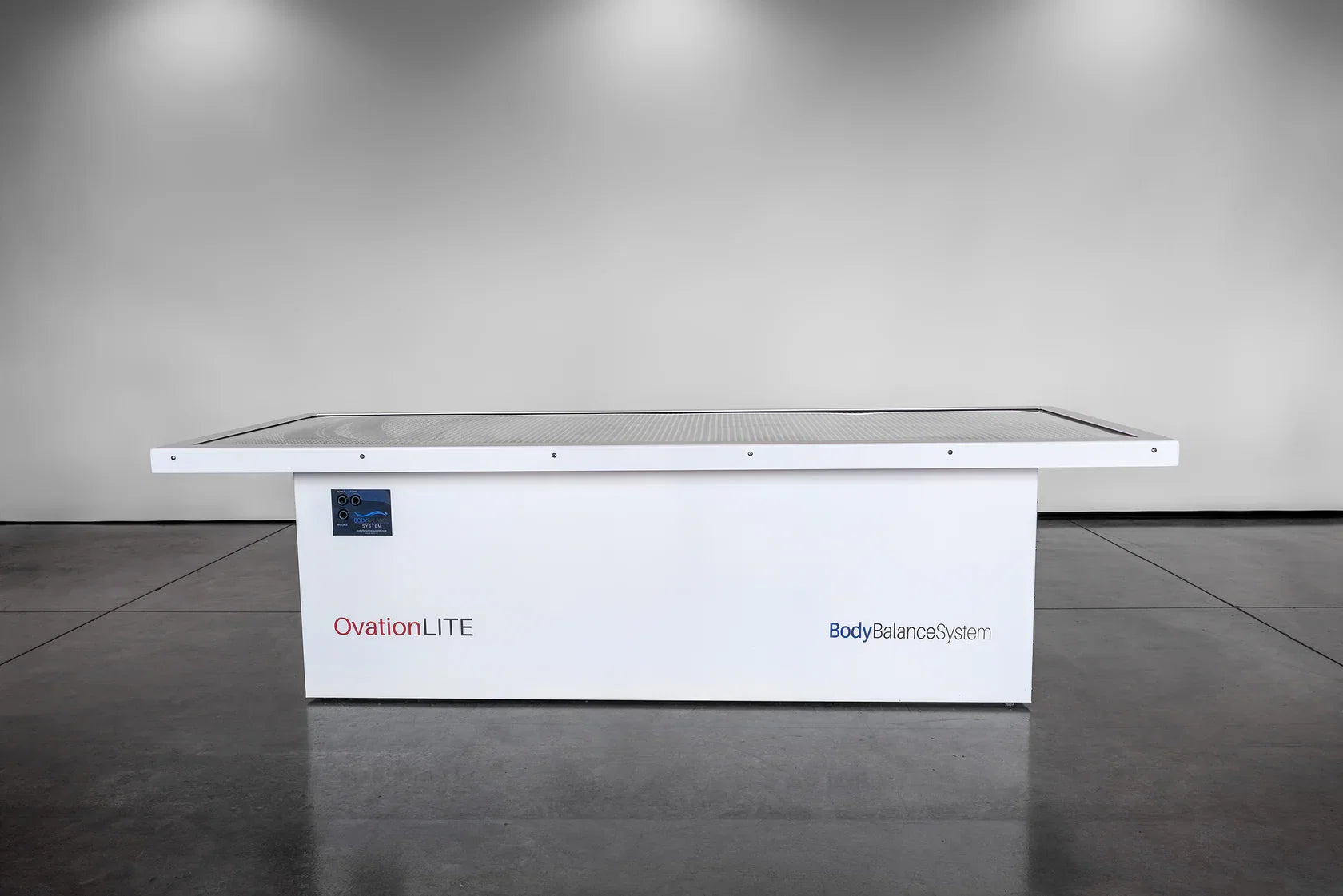

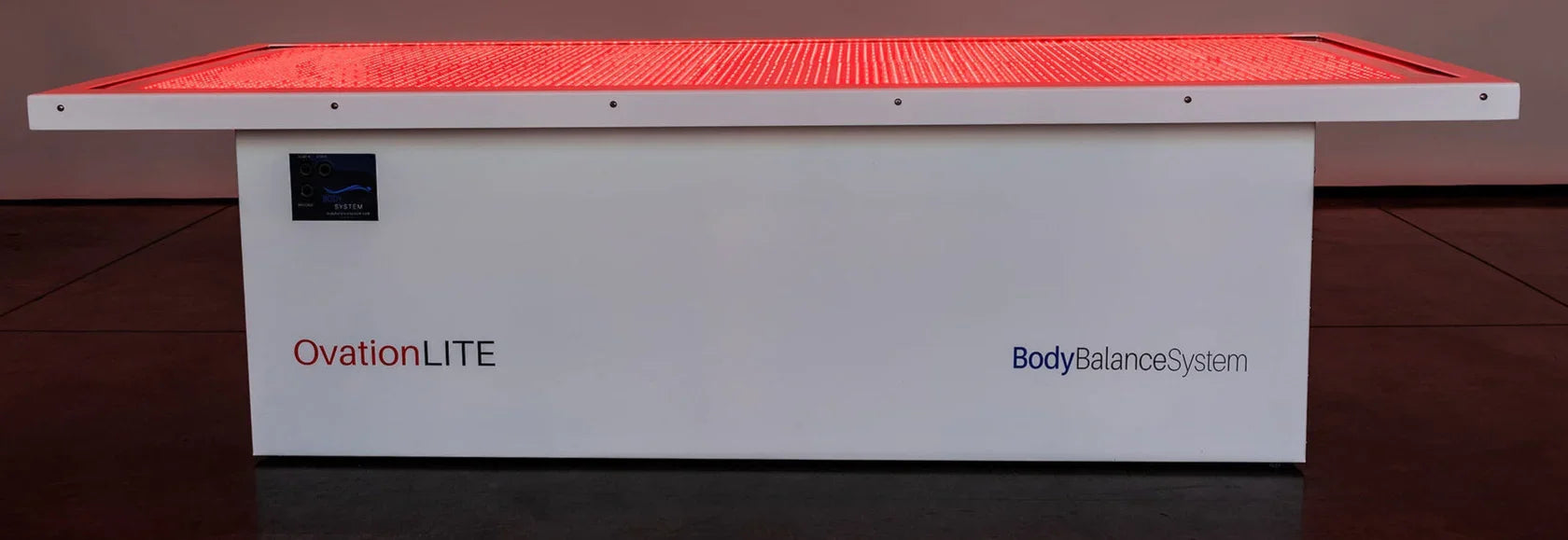

The OvationLITE Red Light Therapy Bed is a full-body red and near-infrared LED system designed for wellness centers, studios, and similar professional environments. Its streamlined, low-profile construction combines a powder-coated steel frame, anodized aluminum canopy, and acrylic lens in a compact configuration designed to fit a variety of treatment rooms.

The OvationLITE operates across 630 nm and 660 nm red light and 810 nm and 850 nm near-infrared (NIR) wavelengths. The LED system provides irradiance up to 90 mW/cm² at 15 cm, with sessions up to 20 minutes. An integrated touchscreen provides straightforward access to preset session lengths and one-touch operation.

Additional features include low-noise cooling fans, a vented canopy, shielded wiring, a grounded chassis, and non-porous acrylic surfaces for straightforward routine cleaning. The flat canopy and slim base provide full-length LED coverage while maintaining a space-conscious footprint.

Key Features

• Full-Body LED Configuration: Dense LED array provides broad light coverage across the full treatment area.
• Dual-Spectrum Wavelengths: Operates at 630 nm and 660 nm red light plus 810 nm and 850 nm near-infrared wavelengths.
• Specified Irradiance: Provides output up to 90 mW/cm² when measured at 15 cm.
• Up to 20-Minute Sessions: Supports session durations up to 20 minutes.
• Integrated Touchscreen: Provides one-touch operation and access to preset session lengths.
• Low-Noise Cooling: Integrated fans and a vented canopy support airflow during operation.
• Shielded Electrical Design: Features shielded wiring and a grounded chassis.
• Easy-Clean Acrylic Surface: Non-porous acrylic deck supports straightforward cleaning between users.
• Low-Profile Construction: Flat canopy and slim base are designed to fit a variety of professional wellness spaces.
• Durable Materials: Constructed with a powder-coated steel frame, anodized aluminum canopy, and acrylic lens.
• Electrical Requirements: Operates on 120V with a 15A dedicated circuit and a maximum specified power draw of 1.8 kW.
• Dimensions: 220 cm L × 90 cm W × 80 cm H.

Who It’s For

The OvationLITE full-body red light therapy bed is designed for wellness centers, studios, and similar professional environments seeking a streamlined red and near-infrared LED bed with touchscreen operation, preset session lengths, active cooling, and an easy-to-clean surface. Its low-profile design makes it suitable for facilities that can accommodate its specified dimensions and electrical requirements.

For relaxation purposes only, not intended to diagnose, treat, cure, or prevent any disease.

Maintenance

• After Each Use: Wipe the lenses and acrylic deck with an appropriate sanitizer compatible with the product surfaces.
• Weekly: Vacuum the intake vents and confirm proper fan operation.
• Annually: Inspect the power cord, fuse, and hinge fasteners and replace filters as required.

Warranty

• Frame & Deck: 3 years
• LEDs & Electronics: 2 years

Product Specifications

Product Type: Full-body red and near-infrared LED bed
Material: Powder-coated steel frame, anodized aluminum canopy, acrylic lens
Dimensions: 220 cm L × 90 cm W × 80 cm H
Red Light Wavelengths: 630 nm & 660 nm
Near-Infrared Wavelengths: 810 nm & 850 nm
Maximum Specified Irradiance: Up to 90 mW/cm² at 15 cm
Maximum Session Duration: 20 minutes
Controls: Integrated touchscreen with preset session lengths
Cooling: Low-noise fans with vented canopy
Electrical Design: Shielded wiring and grounded chassis
Electrical Requirements: 120V, 15A dedicated circuit
Maximum Power: 1.8 kW
Warranty: 3 years on frame and deck; 2 years on LEDs and electronics

For relaxation purposes only, not intended to diagnose, treat, cure, or prevent any disease
